High-Speed Pneumatic Integrated Production Line Part Marking System

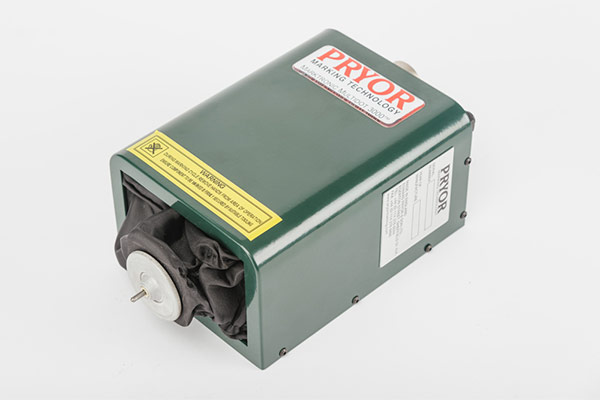

Pryor InDot Fast Pneumatic – 4000 I FP

  • High-Speed Pneumatic Integrated Production Line Part Marking System

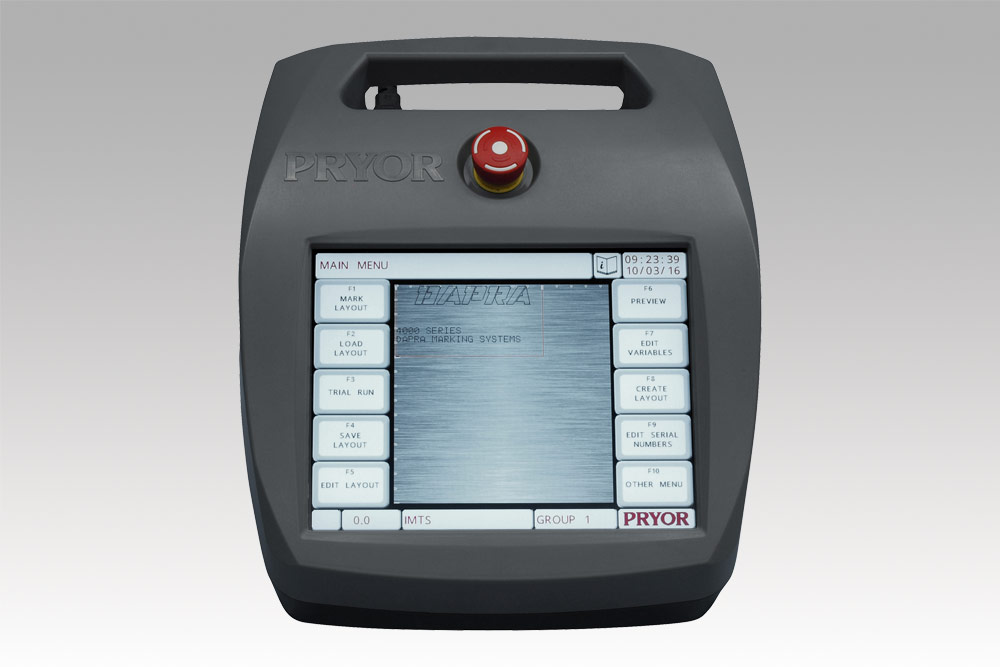

  • 4000 series touch-screen, industrial-grade controller

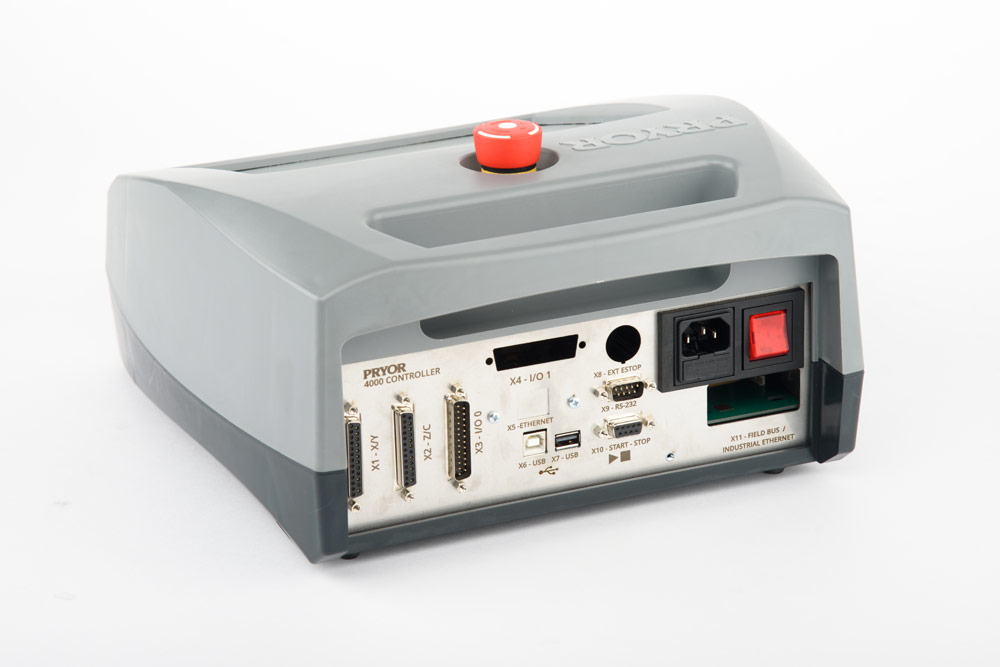

  • 4000 series controller ports

This pneumatically powered vibro marking machine can be easily integrated into an existing automated production line or new custom system for high-speed part marking. The InDot Fast Pneumatic is ideal for high-volume production rates and very fast cycle times.

  • Very fast marking for high-volume production lines with fast cycle times
  • Variable force control for marking different materials
  • Provides excellent depth consistency across the entire mark
  • Compact, robust design
  • Often combined with vision software and robotics to increase the overall speed of multiple processes
  • Flat X/Y linear movement of the marking head ensures additional depth consistency, which may vary with a pivoting marking head
  • Pryor 4000 Controller features a full-color, resistive, industrial-grade touch screen; USB keyboard can be connected
  • Marking window: 1.97" x 0.98" (50 x 25mm)
  • Marking head dimensions (H x W x L): 14.57" x 5.24" x 3.35" (370 x 133 x 85mm)
  • 4000 Controller dimensions: 12.2" x 13.3" x 6.9" (310 x 339 x 175mm) (W x D x H)
  • 4000 Controller weight: 11 lbs. (5 kg)
  • Standard character sizes: 0.15mm - 99.9mm in increments of 0.15mm
  • Standard marking formats: 5 x 7, 7 x 9, Varidot, HPGL, BMP Logos
  • Marking speed: Variable, depends on application
  • Electrical supply: 220v/110v
  • Air supply: 6 bar (87 psi) non-lubricated, dry
  • Programmable depth settings; capable of marking all engineering materials up to 62HRc (800Hv)
  • Memory storage: Up to 1350 marking programs
  • 2 x RS232 and digital I/O (8 In / 6 Out) connectivity – optional Ethernet TCP/IP
  • Full QWERTY integrated membrane keyboard with ] PS/2 port for external keyboards
  • On-screen mark preview and trial-run features
  • Remote start/stop control box
  • PC option using Pryor MarkMaster™ Graphical Software
  • High-speed marking in automated production lines
  • Automotive
  • Software: production management, quality control, multi-station network
