Fiber Laser Marker – Class 4 / Integrated

Datamark FL Series

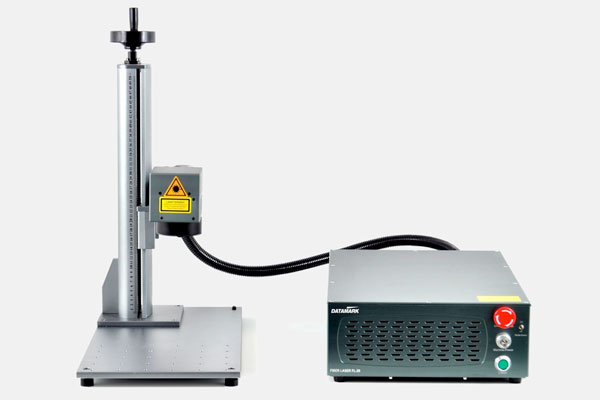

  • Class 4 fiber laser marking workstation
  • Fiber Laser Marker/Engraver

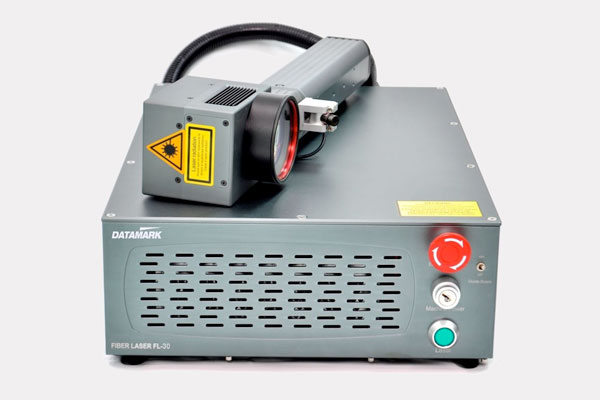

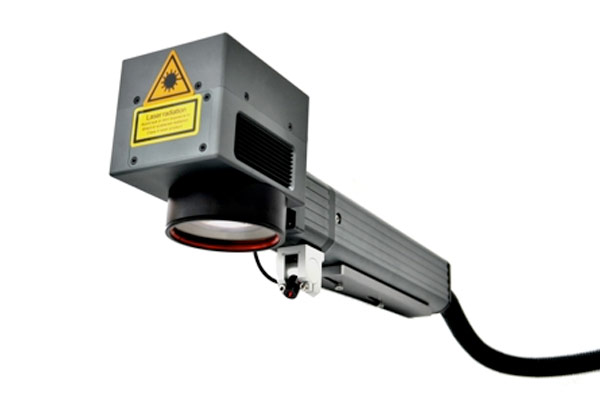

  • Datamark FL series laser marking head
  • Powerful fiber laser marker

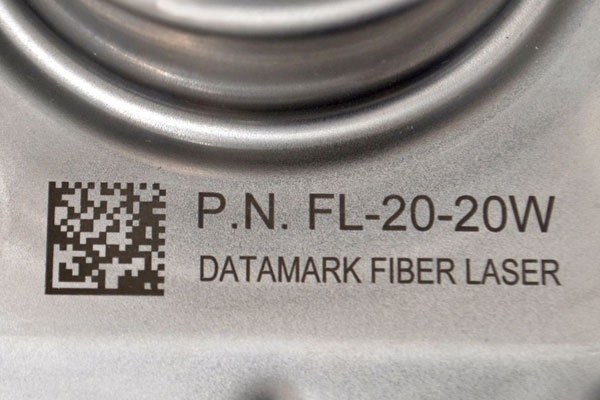

  • Crisp text and data matrix code marking on aluminum

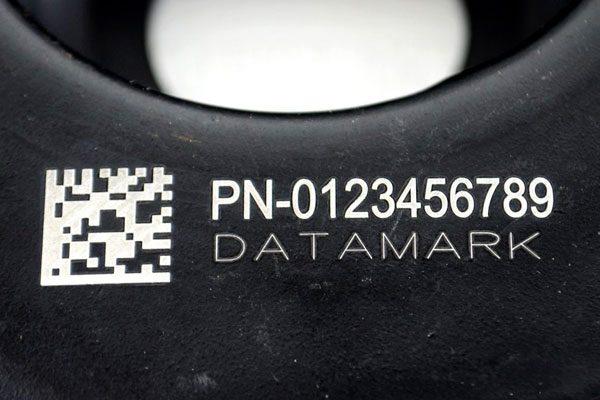

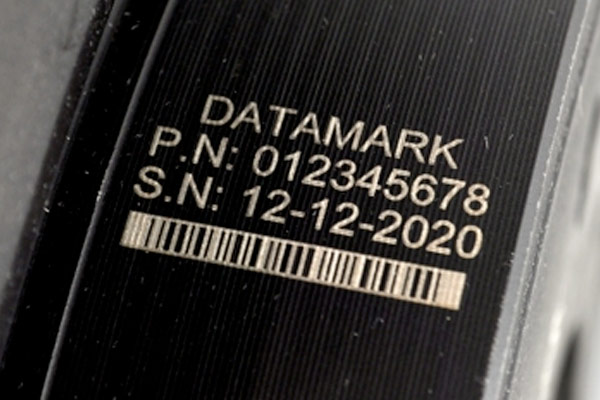

  • Mark on dark parts and components

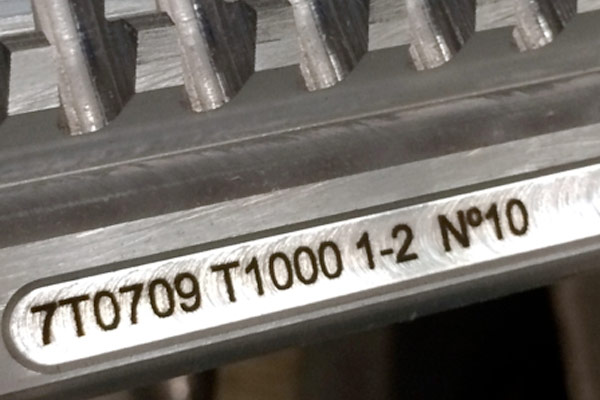

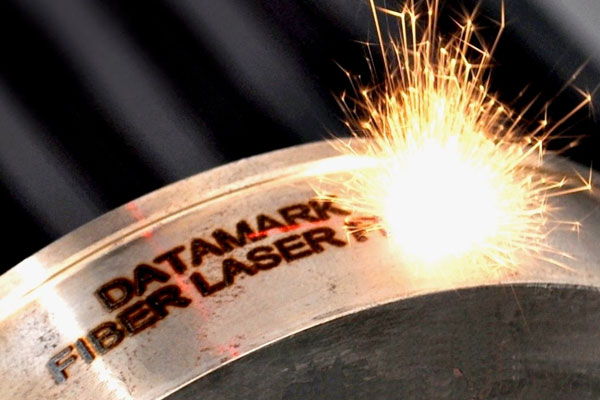

  • Powerful fiber laser for metal engraving
  • High-contrast marking on galvanized steel

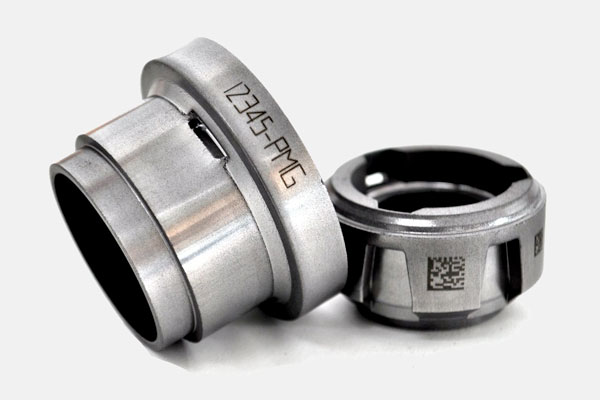

  • Laser marking small metal parts

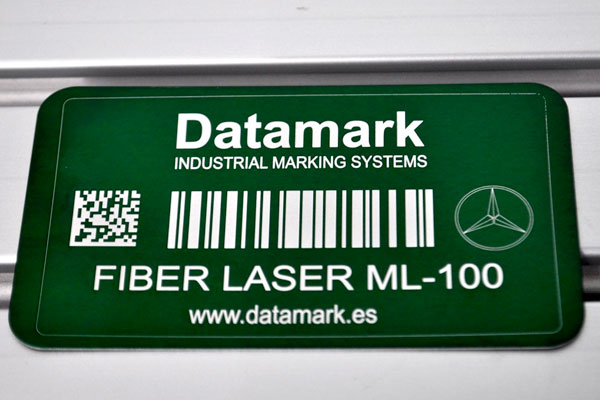

  • Mark anodized aluminum data plates

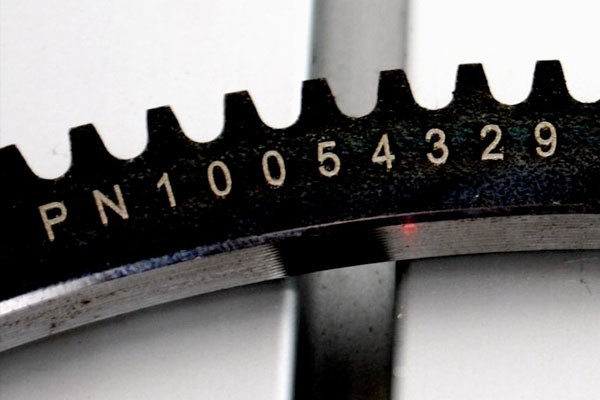

  • Automotive gear marking

FL Series diode-pumped fiber laser markers are a reliable, robust solution available in 20, 30 and 50 watt configurations. These component offerings provide high-speed, precision laser marking and engraving of metals, alloys and a variety of plastics.

These markers can be mounted on a column and base to create an open-style class 4 laser marking workstation or integrated directly into your production line.

  • Power offerings: 20, 30 or 50 watt lasers
  • High-powered options for deep engraving and faster marking
  • F160 lens with 4.33" x 4.33" (110 x 110mm) marking window (standard)
  • F254 lens with 6.9" x 6.9" (175 x 175mm) marking window (optional)
  • Easyfocus™ system for adjusting the marking distance
  • Trialview™ system for marking preview and adjustment
  • Intuitive Datasoft™ marking software for Windows® PCs – supports text, logos, graphics, barcodes, serialization, date codes, data matrix codes, and more
  • Power offerings: 20, 30 or 50 watt lasers
  • Marking technology: Q-switched diode-pumped fiber laser; air cooled
  • Standard lens: F160 with 4.33" x 4.33" (110mmx110mm) marking window; F254 option with 6.9" x 6.9" (175mm x175mm) marking window
  • Marking distance: F160 Lens: 7.28" (175mm) or F254 Lens 11.22" (285mm)
  • Wavelength: 1064 ± 4 nm
  • Pulse frequency / duration: 100 ns
  • Marking speed: Max. 236.2 in./sec. (6000 mm/sec.)
  • Total package dimensions: 16.8" x 23.2" x 31" (width x height x depth)
  • Weight: Marking head 10 lb 9 oz (4.8 kg); Controller 40 lb 13 oz (18.5 kg)
  • Fiber coupling length: 4 ft. 4 in. (1.3 m)
  • Interfaces: USB 2.0, IN/OUT
  • Control panel features: Emergency stop, lock key, laser and red pilot on-off
  • Power supply: 120V/50-60HZ
  • Operating consumption: Max. 200W
  • Operating conditions: 50°F - 107°F (10°C - 42°C), 10%-85% relative humidity
  • Machined parts
  • Firearm components
  • Firearm receivers
  • Deep laser engraving
  • Identification plates
  • Aerospace and automotive components
  • Data Matrix codes for part identification
  • High-contrast marking
  • Crisp logos and graphics
  • Production line marking
  • Column and base for desktop marking
  • Fume extractor
  • Laser cabinet
  • Electric Z-axis
