Cordless Portable Dot Peen Marking Machine with Touchscreen Control

Pryor PortaDot – 60-30 Touch

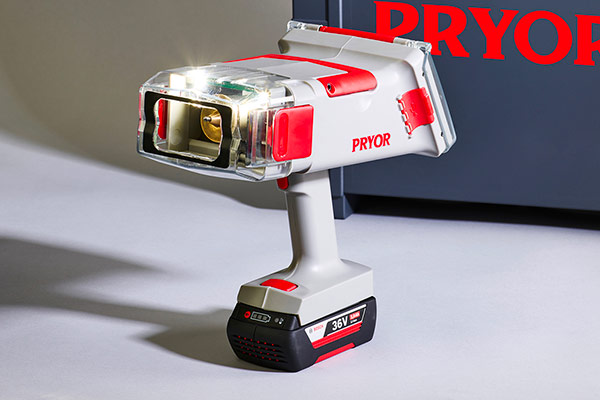

  • Cordless portable marking machine with touchscreen control

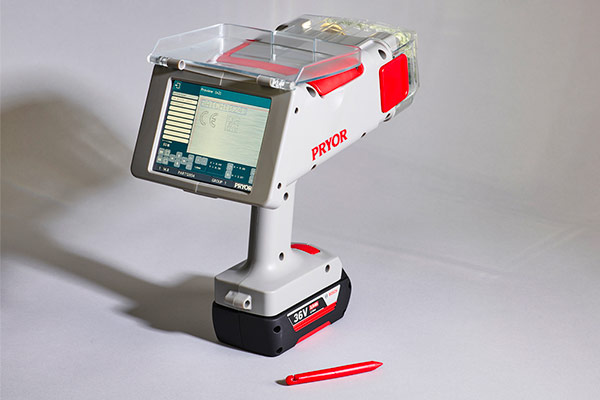

  • Battery-powered handheld dot peen marking machine

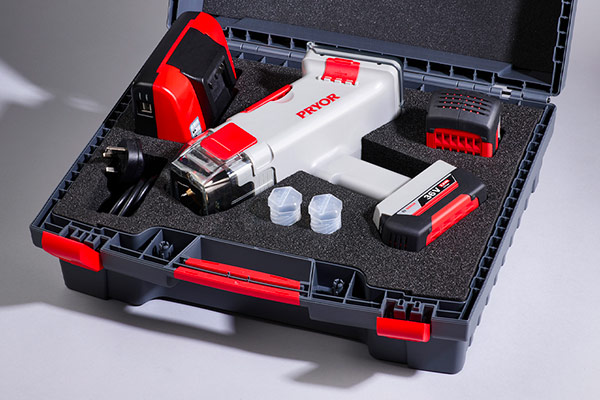

  • Pryor PortaDot 60-30 Touch with heavy-duty case

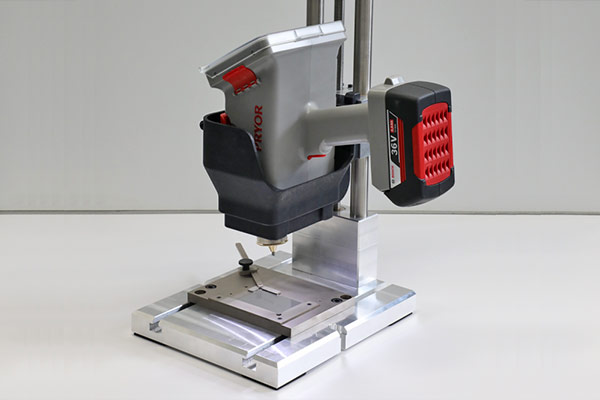

  • Handheld machine mounted for precision desktop marking

This fully cordless, battery-powered dot peen marking machine features an integrated touchscreen controller to maximize portability in the shop or on the job site. It is a highly versatile, lightweight, yet rugged marker that provides fast, convenient marking of a wide variety of parts across multiple locations.

The PortaDot Touch’s 36V battery supports “all-day” use and features patented technology to ensure the marking force does not deteriorate as the battery power depletes.

  • 60mm x 30mm (2-3/8" x 1-1/8") marking window
  • 5.7” integrated touchscreen controller is based on the popular Pryor 4000 Series controller
  • Great for permanently marking text, logos, 2D barcodes, and more on most metals up to 62 Hrc
  • Create, edit, and save marking programs directly on the machine
  • All marking data is backed up to internal storage; option to export via USB
  • Adjustable face mask with horizontal and vertical "V" grooves for tube/pipe marking
  • Integrated LED lighting with tilt activation
  • Column, base, and adapter available for "Combo" operation as a bench-mounted marking station

Complete system includes handheld marking machine with integrated touchscreen controller, one 36V battery (swappable), high-speed battery charger, touchscreen protector, stylus, and heavy-duty carrying case.

  • Marking window: 2-3/8" x 1-1/8" (60 x 30mm)
  • Standard character sizes: 0.19mm - 59.9mm in increments of 0.19mm (5x7 font) or 0.25mm (7x9 font)
  • Dot Mark output styles: 5 x 7, 7 x 9, Varidot, 2D Data Matrix, QR Code, HPGL, BMP Logos
  • Memory Capacity: up to 9000 layouts
  • Dimensions: 6.7" x 11.9" x 11.6" (170 x 303 x 295mm) (W x D x H)
  • Weight (marking head/battery): 8.2 lbs. (3.7 kg)
  • Power supply: 36V swappable battery
  • Drive mechanism: XY precision lead screws
  • Connectivity options: USB A (USB Flash drive, USB Keyboard), USB B (PC USB-Com Connectivity), WiFi 802.11/b/g/d/h/i/n 2.4GHz (Wireless scanners, data logging, network interfacing)
  • MS Excel (*.csv) marking and logging modes
  • Column, base, and adapter for using as a bench-mounted system
