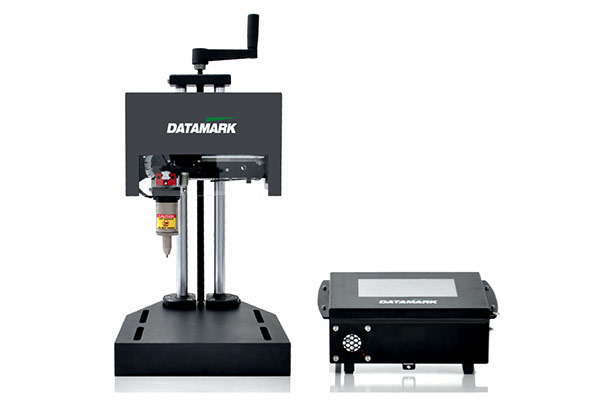

Bench-Top Dot Peen Marking Station with Touchscreen Controller

Datamark MP-120 Advanced Electric

  • Bench-top dot peen marking station with touchscreen controller

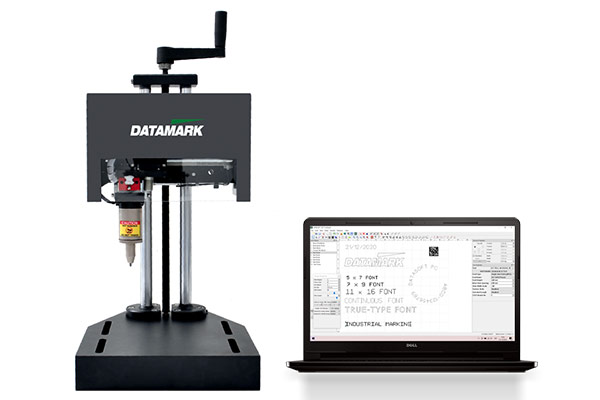

  • Control the MP-120 with touchscreen controller or standalone PC

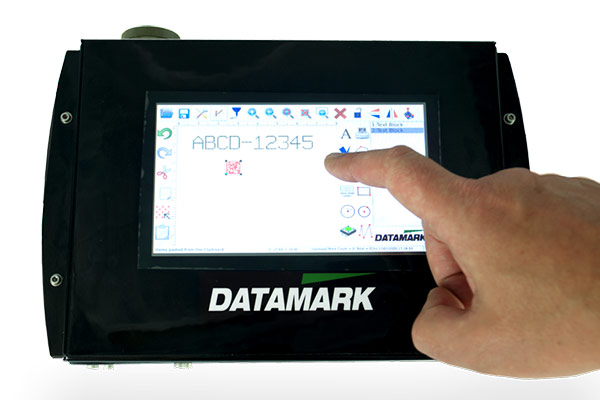

  • 7" full-color touchscreen controller
  • Mark text, part numbers, serial numbers and codes
  • Bench-top data matrix code dot marker
  • Accurate metal data plate marking

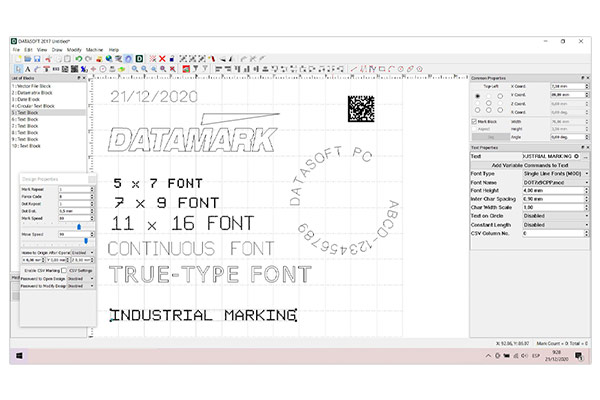

  • DataSoft PC marking software interface

The MP-120 bench-top dot peen marking station features a powerful, fast electromagnetic marking head and industrial touch-screen control panel with intuitive marking software. This desktop marker is great for a wide range of precision industrial marking applications, from small- to medium-sized parts and components to identification name plates.

Program and control marking with Datamark's easy-to-use DataMark™ software, controlled via the mountable touch-screen or a standalone Windows™ PC.

  • Robust, industrial construction
  • Integrated LED lighting system for a better view of the work space under the marking head
  • Transparent front window for easy viewing and adjustment of the marker
  • Wide, robust cast-iron slotted base to support any custom fixture
  • Fully featured, intuitive marking software included with WYSIWYG interface; mark text, numbers, logos, Data Matrix codes and more
  • 7" full-color touch-screen controller or software for a Windows PC

Complete system includes marking station with emergency stop button and integrated LED lighting; touchscreen controller (optional); software package.

  • Marking head technology: Electromagnetic solenoid
  • Marking window: 4.7" x 3.9" (120 x 100mm)
  • Max. workpiece height: 9.45”
  • Marker dimensions: 11.2” x 24.4” x 12.6" (width x height x depth)
  • Marker weight: 44 lbs 2 oz
  • Controller dimensions: 11.3” x 3.5” x 7.3” (width x height x depth)
  • Controller weight: 5 lbs 15 oz
  • PC interface: Ethernet 10/100 or WiFi
  • Marking force: Adjustable for deep marking of metals up to 62 HRC
  • Marking data: Alphanumeric text and keyboard symbols, serial numbers, automatic date & time, shift codes, data matrix codes, vector graphics and logos .PLT, data import from .CSV file
  • Marking fonts: Dot matrix formed: 5 x 7, 7 x 9, 11x16; Continuous line: Fastflan and standard; all available Windows TrueType fonts
  • Power supply: 110/220V; 50/60Hz
  • CE certified

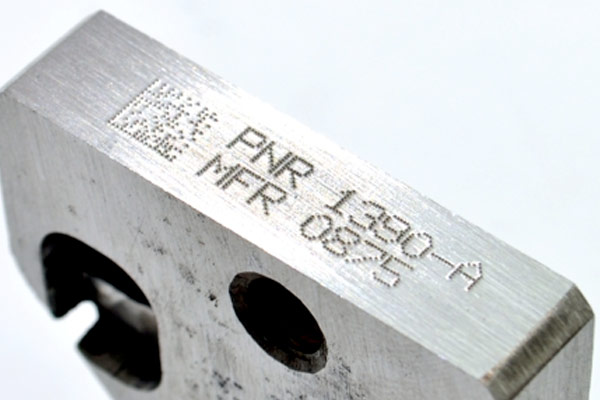

  • Machined parts

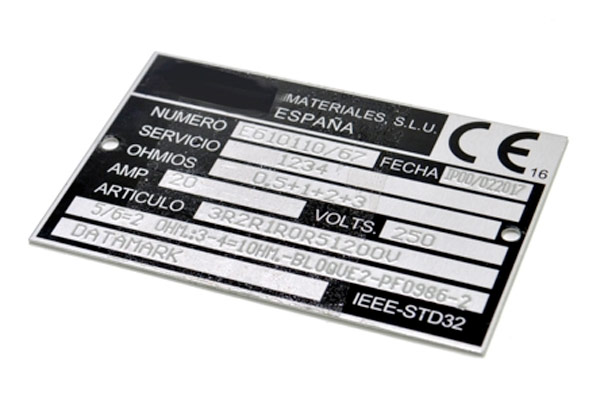

  • Metal tags, labels and nameplates
  • Automatic part serialization
  • Marking references and lot numbers
  • Automatic date and time marking
  • Logos and graphics

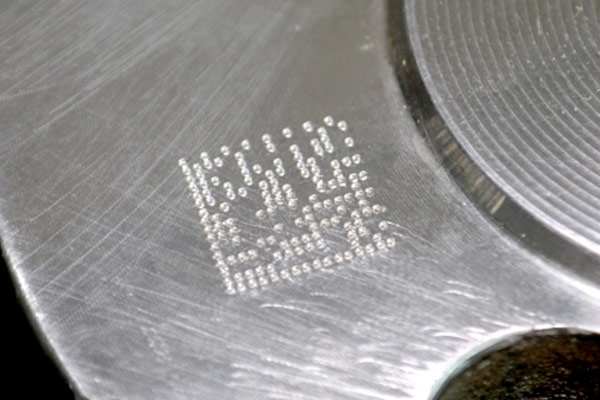

  • Data matrix and QR codes
  • Data plate marking fixture
